Electric Actuated Butterfly Valve
Release time:2025.07.07

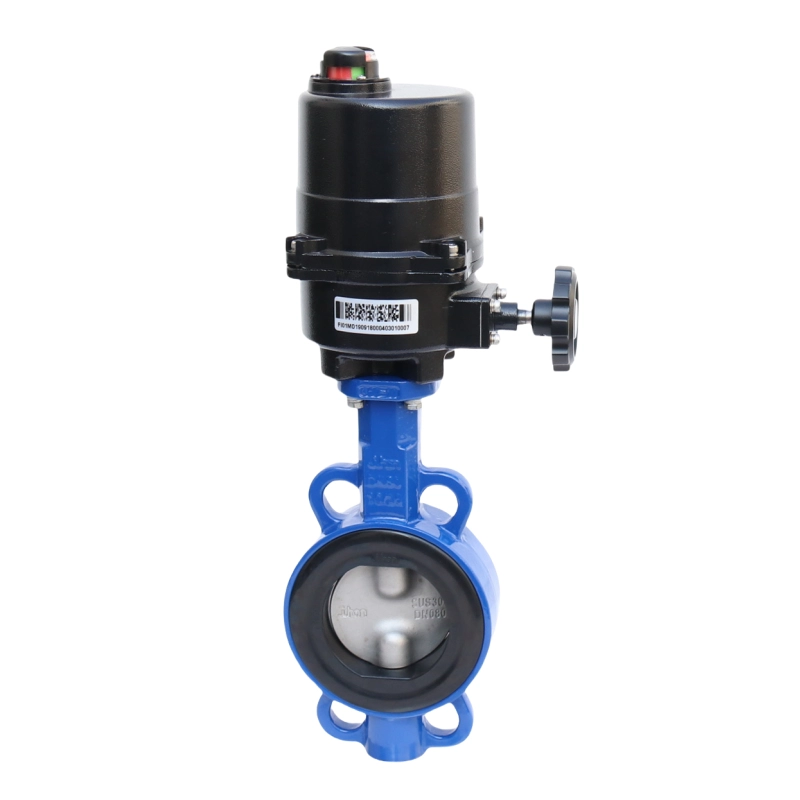

Electric Actuated Butterfly Valve
JUHAN electric actuated butterfly valves are designed for precise positioning control of air, water, oil, and other compatible media.
Capable of automated 90-degree rotation, our butterfly valves feature ISO5211 mounting patterns for easy installation.
The actuator offers both visual and electrical position indication, manual override, and a waterproof enclosure. A unique integrated motor/housing design delivers higher torque in a compact size. Rigorously tested to UL and CSA standards, CSA certified.
Capable of automated 90-degree rotation, our butterfly valves feature ISO5211 mounting patterns for easy installation.
The actuator offers both visual and electrical position indication, manual override, and a waterproof enclosure. A unique integrated motor/housing design delivers higher torque in a compact size. Rigorously tested to UL and CSA standards, CSA certified.
Specifications
- Equipped with electric actuator
- Voltage options: 110VAC or 24VDC
- Body materials: Cast iron, Stainless steel, Cast steel
- Disc materials: CF8, CF8M
- Seat material: EPDM
- Size range: 2'' - 16''
- Max pressure: 230 PSI
- Applications: HVAC systems, Water & Wastewater treatment, Industrial automation
- Features: Automatic control, Cost-effective, Space-saving, Precise control
Working Principle Video
Available Types with Electric Actuators
OEM/ODM Manufacturing Services
JUHAN offers professional R&D and advanced production facilities with over 18 years of experience in valve manufacturing. We welcome partnership discussions to develop your valve business together.Contact Us
If you have any questions, need a quotation, or are interested in OEM/ODM cooperation, feel free to reach out to us.
