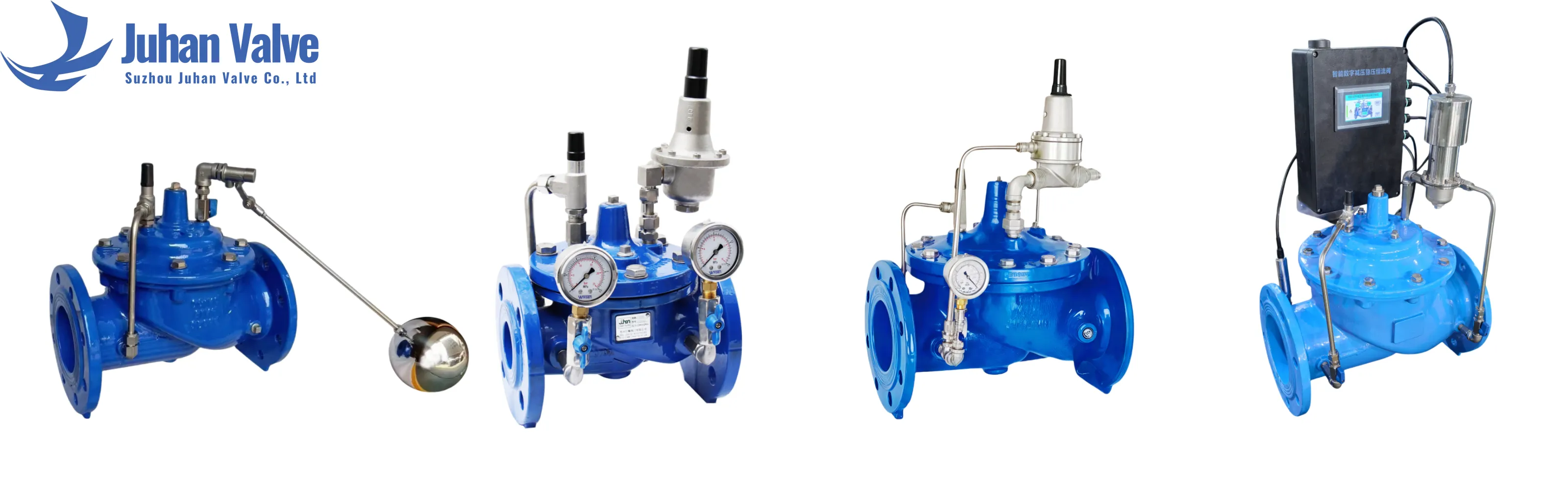

Pressure reducing valve
Category:
- Product details
-
PRODUCT HIGHLIGHTS
Sensitive and precise pressure control, easy to adjust and maintain, excellent and reliable sealing performance, piping is equipped with filter device to prevent clogging.
PRODUCT PARAMETERS
Working pressure level Interface form and standard Temperature, medium Pilot parameters PN10/PN16/PN25/150LB/10K/16K Flange connection, in accordance with: GB / ANSI / BSEN / ISO / DIN / JIS 0 ℃ ～ 80 ℃ normal temperature water Adjustment range：0.5~6kg/cm2,5~9kg/cm2,7~15kg/cm2 Part name Material Valve body Ductile iron / stainless steel Valve cover Ductile iron / stainless steel Spring Stainless steel Diaphragm NBR / VITON Ball valve Brass / stainless steel Needle valve Brass / stainless steel Filter Brass / stainless steel Pilot valve Stainless steel DN 50 65 80 100 125 150 200 250 300 350 400 450 500 600 L 230 290 310 350 400 480 600 730 850 850 1100 1100 1250 1450 H 139 159 179 214 214 333 407 476 526 526 624 624 720 835 H1* 85 95 102 112 127 145 172 205 232 262 292 325 360 425 ФK 173 198 226 265 265 351 436 524 606 606 741 741 1002 1308 S 3/8" 3/8" 3/8" 1/2" 1/2" 1/2" 3/4" 1" 1" 1" 11/2" 11/2" 2" 2" Weight(Kg) 14 19 23 32 45 68 125 200 260 310 560 620 880 1300 APPLICATIONS
There are many applications for W814 / W834 solenoid control valves in industry, such as mixing, cleaning and stirring switch control. The switching signal can use a direct control signal or a signal generated by a sensor to control the valve opening and closing. An electromagnetic control valve can be used to control the water level, and a sensor installed on the water tank generates a switching signal to control the opening and closing of the electromagnetic control valve, thereby achieving the purpose of controlling the water level.
