Solenoid control valve
Category:
- Product details
-
PRODUCT HIGHLIGHTS
The action is sensitive and fast, easy to adjust and maintain, excellent and reliable sealing performance, optional non-return feature, and the pipe is equipped with a filtering device to prevent clogging.
PRODUCT PARAMETERS

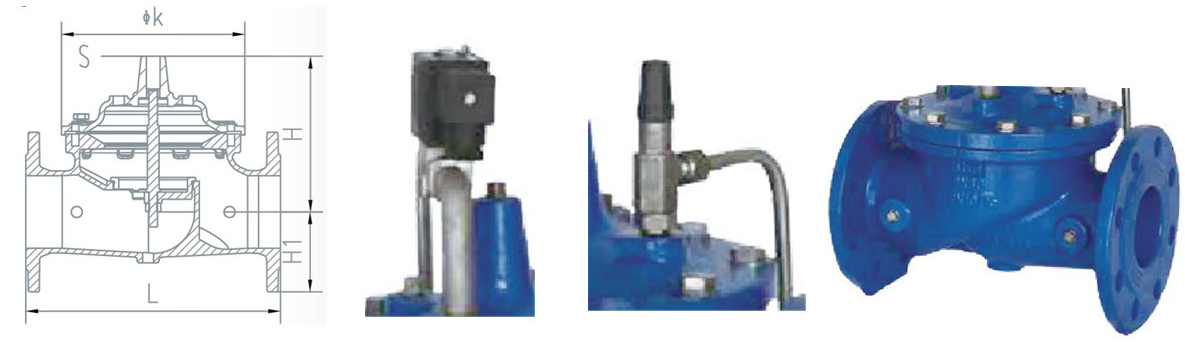

Working pressure level Interface form and standard Temperature, medium Pilot parameters PN10/PN16/PN25/150LB/10K/16K Flange connection, in accordance with: GB / ANSI / BSEN / ISO / DIN / JIS 0 ℃ ～ 80 ℃ normal temperature water Voltage range: 110V / 220V, 50 ~ 60Hz, AC, use mode: normally open / normally closed Part name Material Valve body Ductile iron / stainless steel Valve cover Ductile iron / stainless steel Spring Stainless steel Diaphragm NBR / VITON Ball valve Brass / stainless steel Needle valve Brass / stainless steel Filter Brass / stainless steel Solenoid pilot valve Brass / stainless steel DN 50 65 80 100 125 150 200 250 300 350 400 450 500 600 L 230 290 310 350 400 480 600 730 850 850 1100 1100 1250 1450 H 139 159 179 214 214 333 407 476 526 526 624 624 720 835 H1* 85 95 102 112 127 145 172 205 232 262 292 325 360 425 ФK 173 198 226 265 265 351 436 524 606 606 741 741 1002 1308 S 3/8" 3/8" 3/8" 1/2" 1/2" 1/2" 3/4" 1" 1" 1" 11/2" 11/2" 2" 2" Weight(Kg) 14 19 23 32 45 68 125 200 260 310 560 620 880 1300 APPLICATIONS

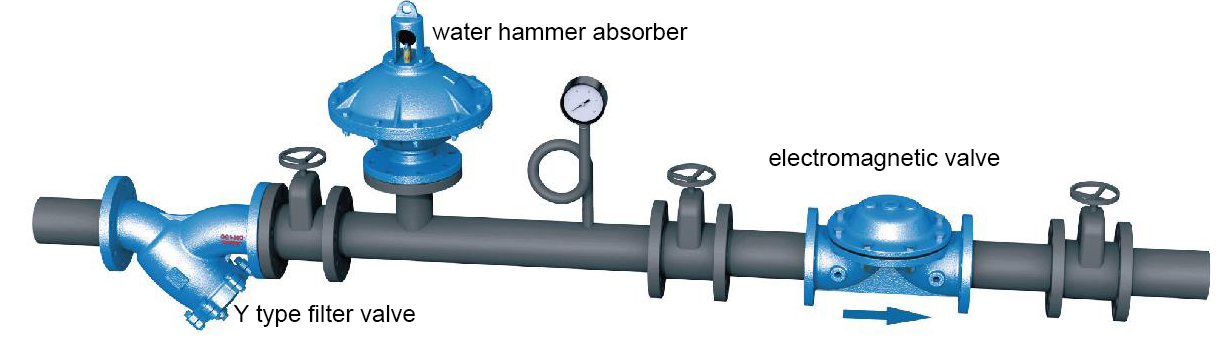

There are many applications for W814 / W834 solenoid control valves in industry, such as mixing, cleaning and stirring switch control. The switching signal can use a direct control signal or a signal generated by a sensor to control the valve opening and closing. An electromagnetic control valve can be used to control the water level, and a sensor installed on the water tank generates a switching signal to control the opening and closing of the electromagnetic control valve, thereby achieving the purpose of controlling the water level.
