Flow regulating valve
Category:
- Product details
-
PRODUCT HIGHLIGHTS
Precise differential pressure control, easy to adjust and maintain, excellent and reliable sealing performance, piping is equipped with filter device to prevent clogging.
PRODUCT PARAMETERS
Working pressure level Interface form and standard Temperature, medium Pilot parameters PN10 / PN16 / PN25/ 150LB / 10K / 16K Flange connection, in accordance with: GB / ANSI / BSEN / ISO / DIN / JIS 0 ℃ ～ 80 ℃ normal temperature water Pressure range：0.2~2.5 kg/cm2, 5~9 kg/cm2, Part name Material Valve body Ductile iron / stainless steel Valve cover Ductile iron / stainless steel Spring Stainless steel Diaphragm NBR / VITON Ball valve Brass / stainless steel Needle valve Brass / stainless steel Filter Brass / stainless steel Differential pressure control valve Brass / stainless steel APPLICATIONS

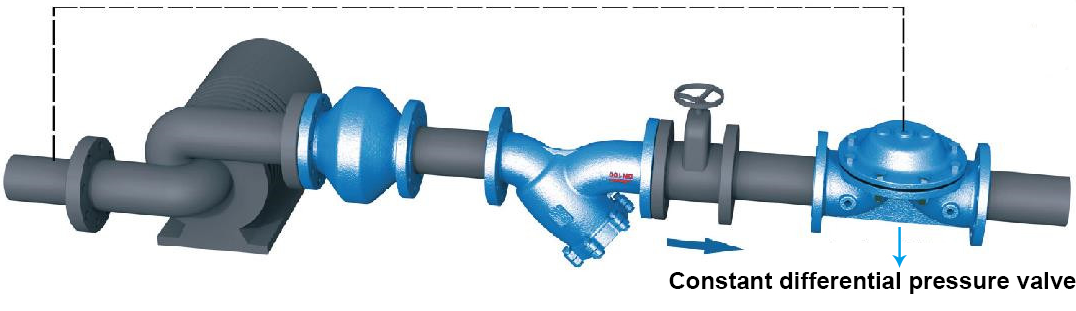

The differential pressure bypass valve can maintain the pressure difference of the flow through the centrifugal pump. No matter how the upstream supply or the downstream demand changes, the pressure difference can always be maintained within a certain range. By controlling the pressure difference across the centrifugal pump, the flow of the pump can be controlled.

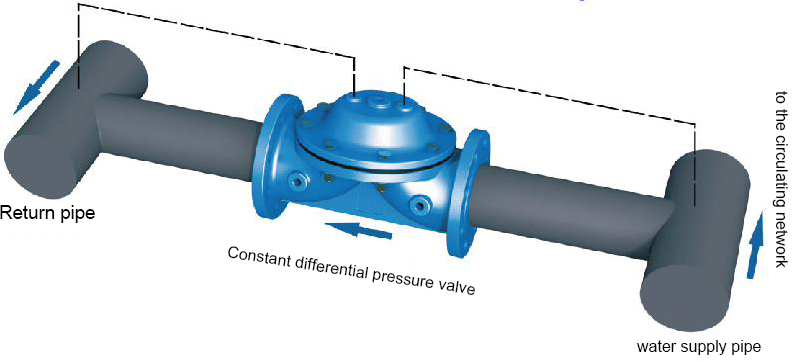

Install the W817/W837 differential pressure bypass valve in the circulating water system, as shown in the figure. It can ensure the pressure difference between the supply pipe and the return pipe, and no matter how the flow changes, how the supply pressure changes, the pressure difference between the two pipes is constant.
