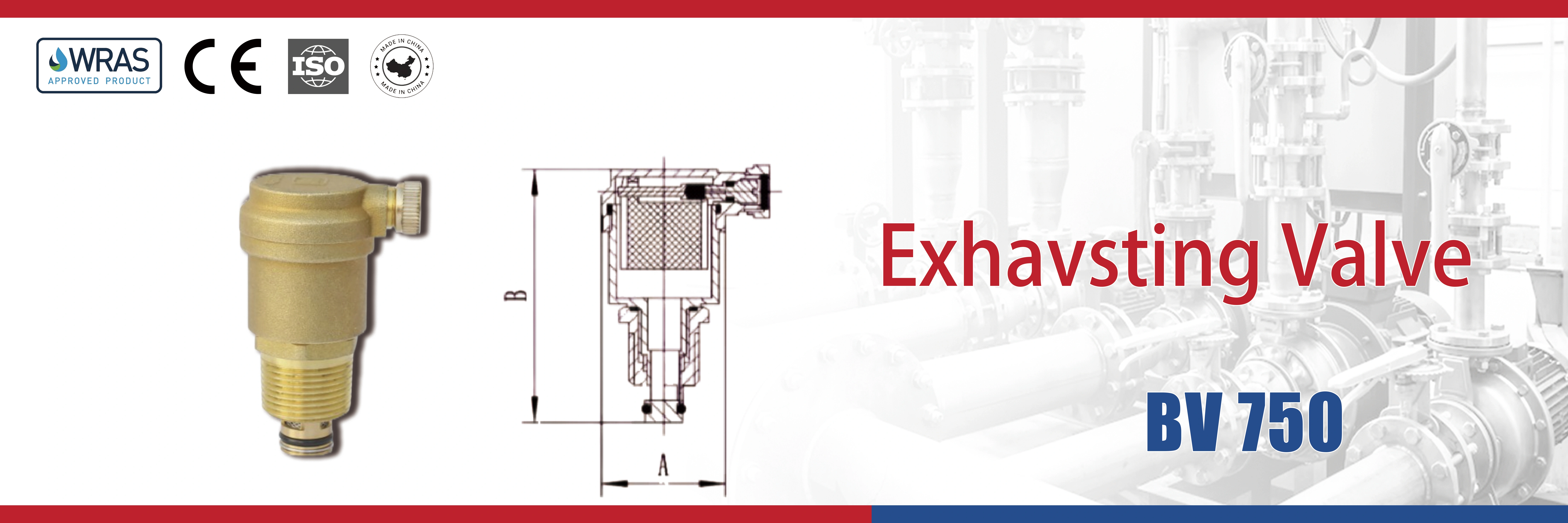

Exhavsting Valve - BV750

The Exhausting Valve is designed for efficient air release in water systems, ensuring stable performance and reliable operation. Manufactured with precision, it features a compact structure and threaded cylindrical connections compliant with ISO 228 standards.

Juhan’s With sizes ranging from DN15–DN25, a nominal pressure rating of 1.6 MPa, and a working temperature range of 0–100°C, this valve is suitable for both residential and industrial water pipelines. It can be directly connected to drainage pipes, making installation flexible and convenient.

High-Performance Materials & Engineering

Key Features of the Exhausting Valve for reliable air release and long-term system protection. Key structural features include:

• Durable brass body with excellent resistance to water corrosion.
• Automatic float mechanism for continuous and efficient air discharge.
• Compact design allows easy installation and maintenance.
• Threaded cylindrical connection complies with ISO 228 standard and can be linked to drainage pipes.

Working Principle

The Exhausting Valve works by automatically releasing trapped air from water systems, ensuring smooth flow and reliable operation. Its internal float mechanism adjusts with the air and water levels, enabling continuous and efficient discharge.

• System Filling： When the pipeline is filled with water, the float rises with the water level, sealing the outlet tightly to prevent leakage.
• Air Accumulation: As air collects in the chamber during operation, the water level drops, causing the float to descend.
• Air Release: The descending float opens the outlet, allowing the trapped air to escape. Once the air is discharged, the water level rises again and reseals the outlet.

This simple mechanism ensures reliable shut-off and low-pressure loss, making it ideal for water supply, heating, and seawater pipelines.

Factory Strength & Experience

Established in 2007, our factory combines 18+ years of expertise with cutting-edge manufacturing capabilities. We serve top-tier clients across industries, with thousands of units operating reliably in cleanroom, municipal, and industrial environments.
