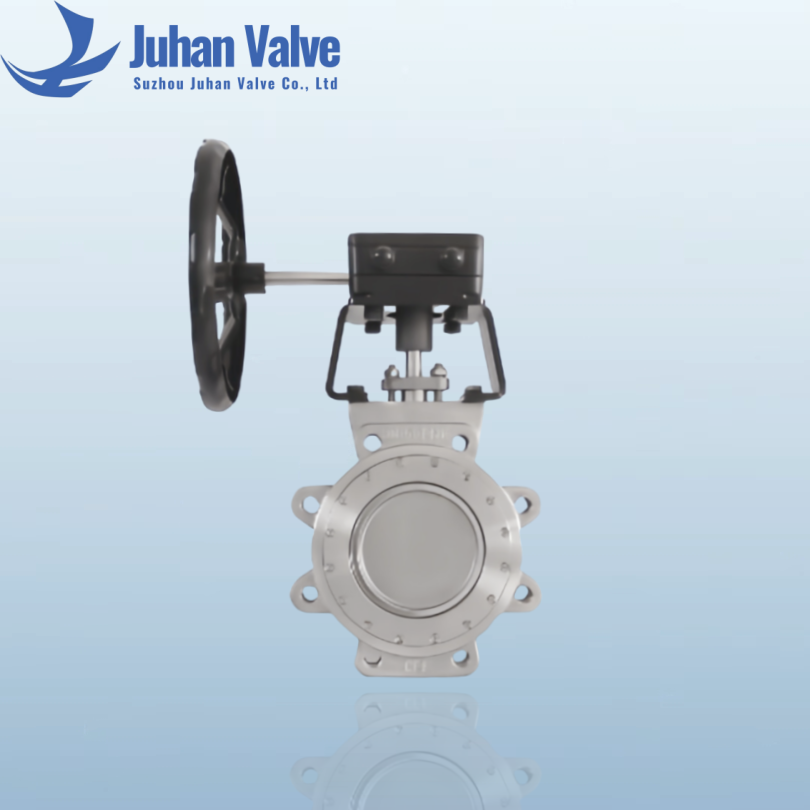

Eccentric Butterfly Valve (Model: BV132)
Introduction
The Eccentric Butterfly Valve, model BV132, is engineered for efficient fluid control with lower operating torque. Its soft seat design and precision machined disc ensure reliable, low-leakage operation in water systems.
Working Principle
An eccentric butterfly valve differs from a concentric type by offsetting the stem from the disc centerline. This offset design reduces friction during operation and enhances sealing performance, especially under high-flow conditions.
Technical Specifications
- ● Nominal Diameter (DN): DN40–DN600
- ● Pressure Rating: PN10 / PN16
- ● Temperature Range: 0℃ – 80℃
- ● Medium: Water
- ● Standards: Flanged; GB / ANSI / JIS
Key Features
- ● Replaceable soft seat design for easy maintenance.
- ● Bronze alloy and PTFE stem bushings for better sealing and lower torque.
- ● Disc with arc mirror-surface finishing for smoother operation.

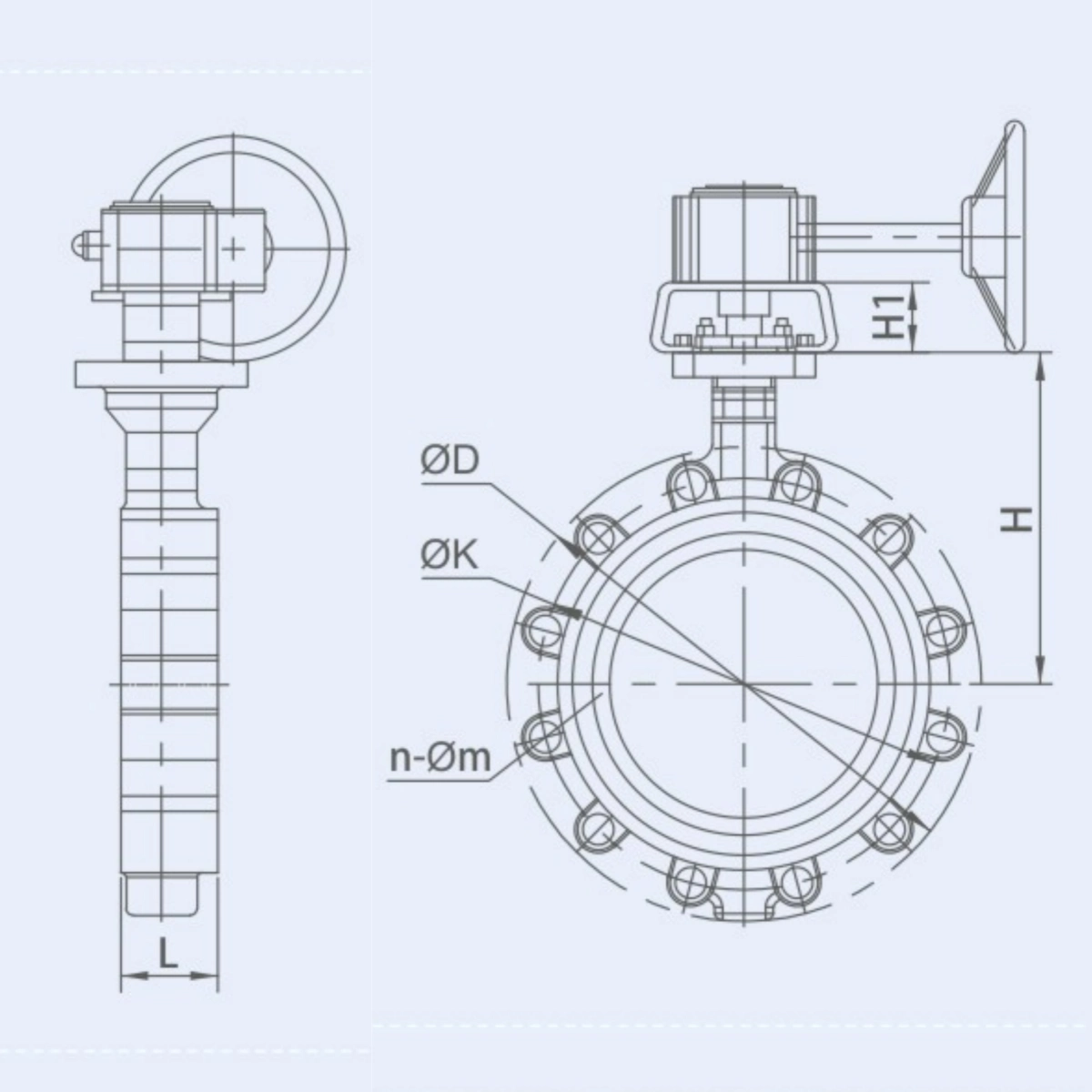

Nominal Caliber Dimensions (Unit: mm)
DN Inch ΦD ΦK n-ΦM L H H1 DN50 2" 165 125 4-M16 45 100 60 DN65 2.5" 185 145 8-M16 49 111 60 DN80 3" 200 160 8-M16 49 121 70 DN100 4" 220 180 8-M16 54 133 70 DN125 5" 250 210 8-M16 57 135 70 DN150 6" 285 240 8-M20 57 162 70 DN200 8" 340 295 12-M20 64 237 80 DN250 10" 405 355 12-M24 71 268 80 DN300 12" 460 410 12-M24 81 308 100 DN350 14" 520 470 16-M24 92 330 100 DN400 16" 580 525 16-M27 102 400 120 DN450 18" 640 585 20-M27 114 415 120 DN500 20" 715 650 20-M30 127 456 120 DN600 24" 840 770 20-M33 154 490 150 Q&A
- ● Can the seat be replaced?
- Yes, this model features a replaceable soft seat for easy maintenance and cost-effective service.
- ● What is the valve used for?
- It is designed for water systems, especially in pipelines requiring tight shutoff and low-torque operation.
Certifications
- ● ISO 9001: Quality Management System
- ● CE Compliance for Europe
- ● GB, ANSI, and JIS standards approval
Applications
- ● Water treatment and distribution systems
- ● HVAC systems
- ● General industry pipelines
